Imaging plays a central role in modern orthopedics because it allows doctors to look inside the body without surgery. Whenever someone experiences joint pain, a sports injury, or trauma from an accident, the first step toward diagnosis is often medical imaging. While many people assume all scans are the same, X-rays, MRI scans, and CT scans actually serve very different purposes. Each imaging method shows different types of tissues and injuries, which is why orthopedic and sports medicine specialists rely on all three depending on the situation.
Each imaging method has strengths and limitations. Some show bones clearly, while others reveal soft tissues like ligaments or cartilage. That is why orthopedic specialists frequently use more than one imaging option, depending on the specific injury, symptoms, and the level of detail needed [1].

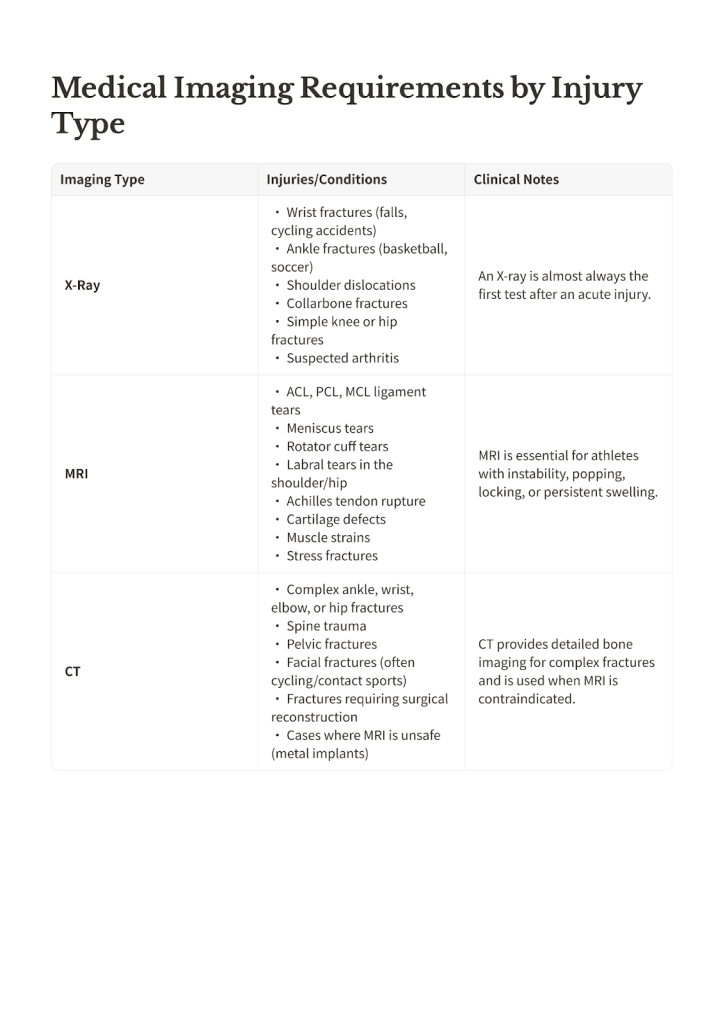

Understanding How Each Scan Works
X-Ray: The Foundation of Bone Imaging
X-rays use a small dose of radiation to create images of bones. Dense structures such as bone absorb radiation, appearing bright on the X-ray image. This makes X-rays the quickest and most accessible tool for detecting fractures, dislocations, and bone alignment problems.
X-rays are excellent for:
- Bone fractures
- Joint dislocations
- Arthritis or joint-space narrowing
- Bone deformities
However, X-rays cannot show ligaments, tendons, menisci, cartilage, or muscle injuries, meaning a normal X-ray does not always mean the joint is healthy.
MRI: The Best Tool for Soft Tissue Damage
Magnetic Resonance Imaging (MRI) uses magnetic fields and radio waves instead of radiation. It produces detailed images of soft tissues inside joint structures that X-rays simply cannot show. This makes MRI the gold standard for diagnosing ligament tears, tendon injuries, cartilage damage, muscle strains, and early stress fractures.
MRI is preferred for:
- ACL, PCL, or MCL tears
- Meniscus injuries
- Rotator cuff or labrum tears
- Cartilage degeneration
- Tendon ruptures
- Spinal disc injuries
- Bone bruises
MRI is especially valuable in sports medicine, where soft-tissue injuries are more common than bone fractures [2].
CT Scan: High-Detail Imaging for Complex Bone Injuries
A CT (Computed Tomography) scan combines multiple X-ray slices to create cross-sectional or 3D images of bones and joints. CT shows far more detail than a standard X-ray, making it ideal for analyzing injuries involving multiple bone fragments or fractures that extend into the joint.
CT is best used for:
- Complex fractures
- Spine fractures
- Pelvic or hip fractures
- Fractures requiring surgery
- Joint surface reconstruction
- Trauma cases
Because CT uses more radiation than X-ray, it is reserved for cases where highly detailed bone imaging is essential [3]
Why We Need Different Imaging Options for Joint Injuries
Orthopedic injuries are not one-dimensional. A single injury may involve bones, cartilage, ligaments, tendons, and surrounding soft tissue. No imaging method can show all of these equally well.
1. Bones and soft tissues show differently
- X-ray shows bones but not ligaments.
- MRI shows ligaments and cartilage, but it is slower.
- CT shows complex bone detail in 3D.
2. Some injuries hide on X-ray
An ACL tear, meniscal injury, or tendon rupture often appears “normal” on X-ray, requiring an MRI to reveal the problem.
3. High-energy trauma needs CT
Car accidents, falls from height, or major sports injuries can produce fractures too complicated for a standard X-ray.
4. Accurate imaging = better treatment
Early and appropriate imaging prevents misdiagnosis, avoids delayed healing, and ensures safe return to activity [1].X-ray, MRI, and CT scans each play a unique role in orthopedic diagnosis. X-rays provide quick and reliable views of bones, MRI gives unmatched detail of soft tissues, and CT scans deliver precise 3D information about complex fractures. The reason doctors use multiple imaging options is simple: joint injuries are complex, and no single scan can show everything. Choosing the right imaging test ensures accurate diagnosis, safer treatment, and quicker recovery, especially for athletes and active individuals.
Our goal at the Orthopedic and Sports Medicine Institute (OSMI) is to provide our patients with quality, cutting-edge orthopedic treatments, both surgical and non-surgical. If you have questions about a shoulder procedure or have pain, please submit an online appointment request or contact our office. We have clinic locations in Fort Worth, Mansfield, and Decatur.
References
1. Leone A, Cassar-Pullicino VN, D’Aprile P, Nasuto M, Guglielmi G: Computed Tomography and MR Imaging in Spondyloarthritis. Radiol Clin North Am. 2017, 55:1009–21. 10.1016/j.rcl.2017.04.007
2. Coris EE, Zwygart K, Fletcher M, Pescasio M: Imaging in Sports Medicine. Sports Med Arthrosc Rev. 2009, 17:2–12. 10.1097/JSA.0b013e318195ffb0
3. Cleveland Clinic logo: Computed Tomography (CT) Technologist. CT Scan Technologist | Center for Health Sciences Education | Cleveland Clinic
